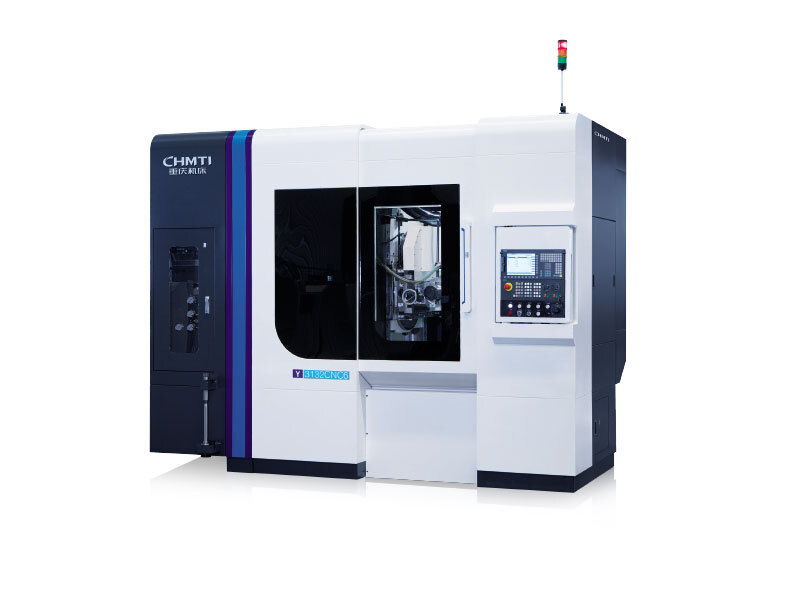

Y3132CNC6/YDA3132CNC

CNC high efficiency gear hobbing machine

The machine tool is mainly suitable for high-efficiency gear hobbing in large quantities in industries such as passenger cars, commercial vehicles, construction machinery, marine machinery, agricultural machinery and reducer. The precision of the machine tool can reach grade 6 of GB / t10095.1-2008 standard (the actual machining precision shall be subject to the technical agreement signed with the user).

CategoryHobbing Machine

Consult Back to list

Detail

Main performance and characteristics of machine tool:

◆ the machine tool is a six axis four linkage CNC high-efficiency gear hobbing machine, which can be processed dry or wet.

◆ the workpiece spindle of yda3132cnc machine tool adopts direct drive, with short transmission chain and high transmission precision;

◆ the machine tool has compact structure and good dynamic and static rigidity. It is suitable for cutting with large tool path of multi head hob, which greatly improves the cutting efficiency, especially for the efficient processing of medium and large module gears.

◆ the machine tool is equipped with fully enclosed protective cover, oil mist collection device, automatic chip removal device, workpiece automatic clamping device, etc;

◆ automatic loading and unloading unit and workpiece bin can be selected, which can easily form an automatic gear processing production line with other machine tools.

◆ the machine tool can be configured with FANUC or Siemens system.

Main technical specifications and parameters of machine tool:

Serial number	Main technical specifications		Parameter specification
Serial number	Main technical specifications		Y3132CNC6	YDA3132CNC
1	Maximum workpiece diameter	mm	320	320
2	Maximum workpiece modulus	mm	8	8
3	Maximum return angle of tool holder	°	±45°	±45°
4	Maximum speed of hob spindle	r/min	700	1000
5	Maximum speed of worktable	r/min	60	80
6	Maximum tool size (diameter) × Length)	mm	Φ170×230	Φ170×230
7	Maximum axial movement of hob	mm	200	200
8	Distance between hob center and worktable rotation center	mm	40~310	30~320
9	Distance from hob center to worktable	mm	210~570	210~570
