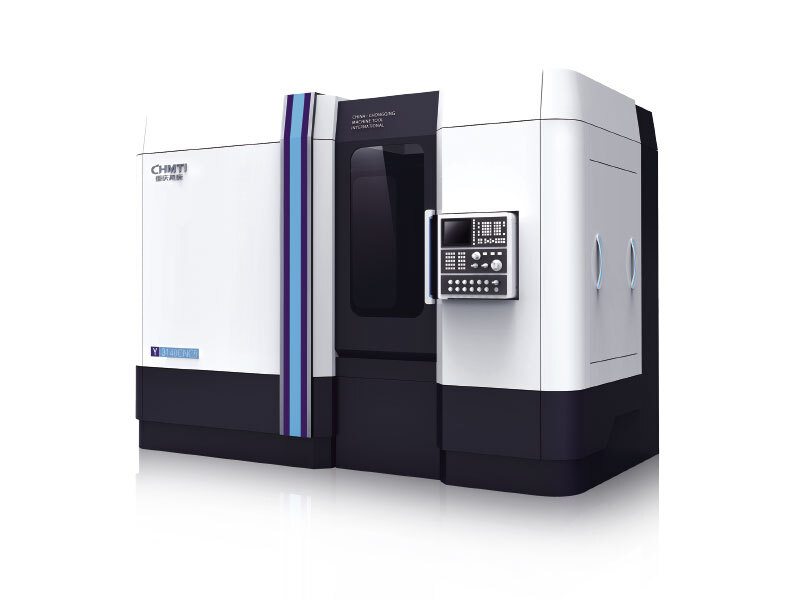

Y3160CNC4~6
CNC high efficiency gear hobbing machine
The machine tool is mainly suitable for high-efficiency gear hobbing in large quantities in passenger cars, commercial vehicles, construction machinery, marine machinery, agricultural machinery, reducer and other industries. The finishing accuracy of the machine tool can reach grade 6-7 of GB / t10095.1-2008 standard (the actual machining accuracy shall be subject to the technical agreement signed with the user).
CategoryHobbing Machine
Detail
Main performance and characteristics of machine tool:
?
◆ the machine tool is a six axis four linkage CNC high-efficiency gear hobbing machine with wet processing.
?
◆ the machine tool adopts vertical layout structure, and the linear motion axis guide rail is supported by large plane cast iron guide rail and scraped by precision, with good contact strength and motion accuracy.
?
◆ the machine tool is equipped with fully enclosed protective cover, oil mist collection device, automatic chip removal device, automatic workpiece clamping device, etc.
?
◆ the machine tool can be configured with FANUC or Siemens system.
?
Main technical specifications and parameters of machine tool:
?
|
Serial number |
Main technical specifications |
Parameter specification |
|
|---|---|---|---|
|
Y3160CNC4~6 |
|||
|
1 |
Maximum workpiece diameter |
mm |
600 |
|
2 |
Maximum workpiece modulus |
mm |
14 |
|
3 |
Maximum rotation angle of tool rest |
° |
±45° |
|
4 |
Maximum speed of hob spindle |
r/min |
500 |
|
5 |
Maximum speed of worktable |
r/min |
35 |
|
6 |
Maximum tool size (diameter) × Length) |
mm |
Φ200×240 |
|
7 |
Maximum axial movement of hob |
mm |
200 |
|
8 |
Distance from hob center to worktable rotation center |
mm |
45-405 |
|
9 |
Distance from hob center to worktable |
mm |
280-680 |
?
